PALATECH utility tunnels

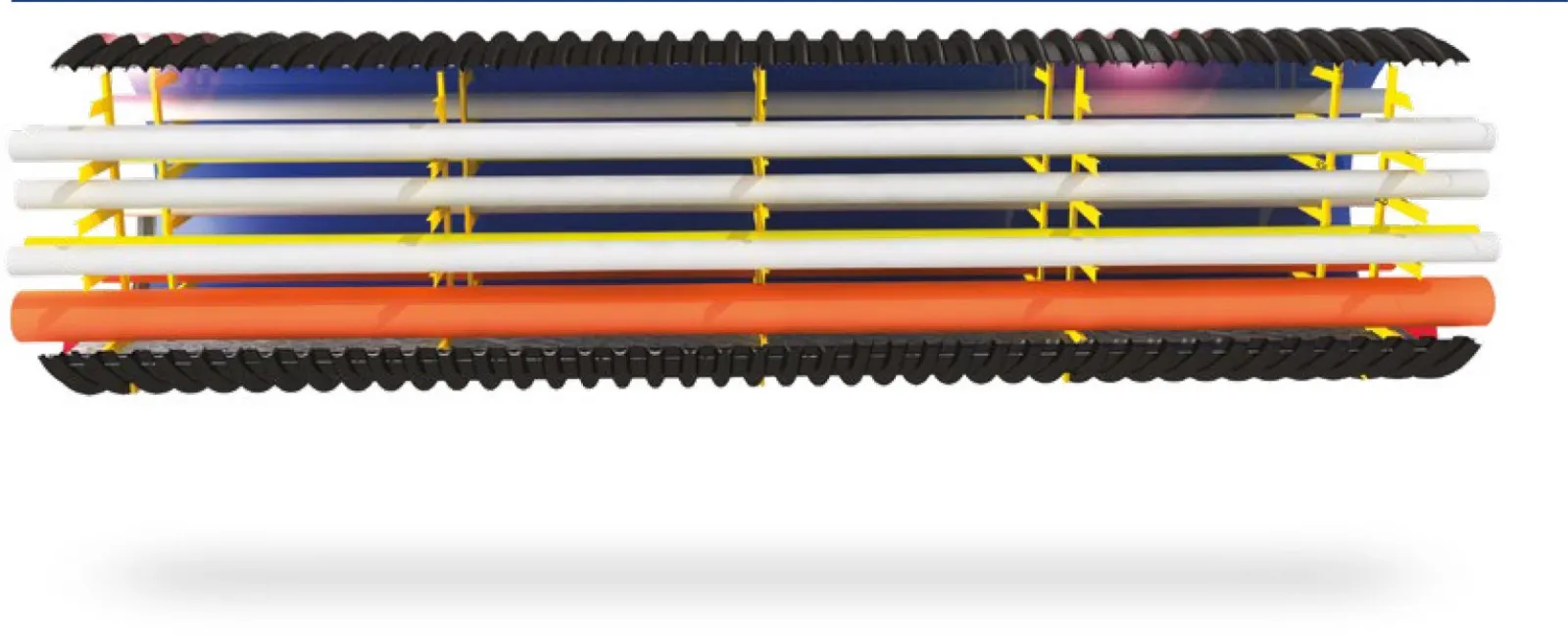

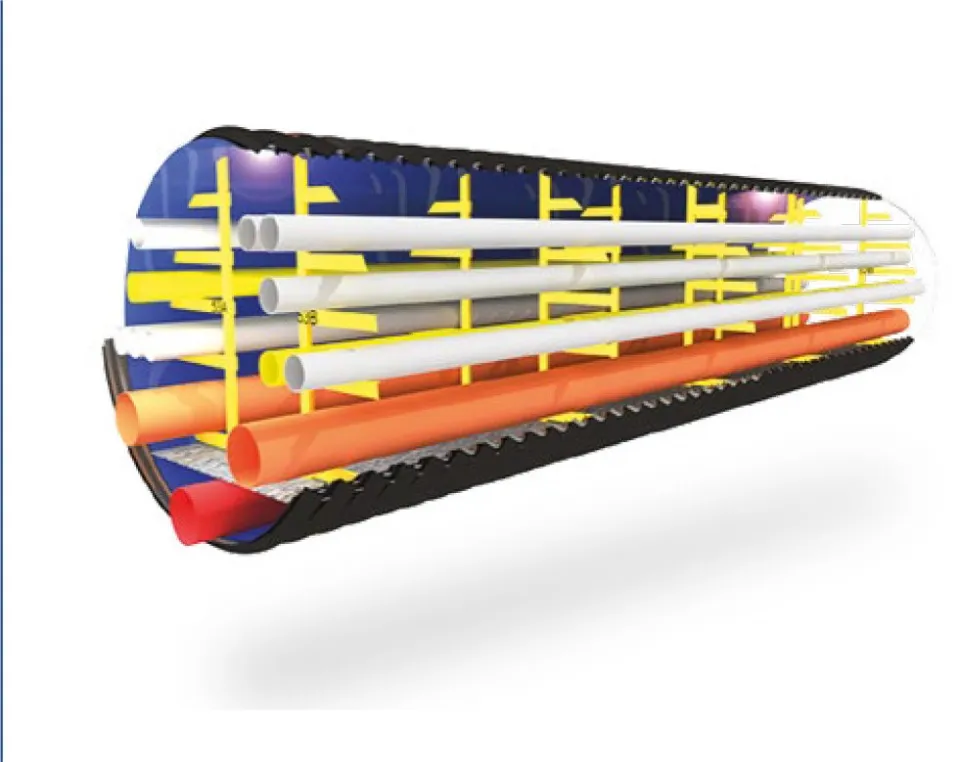

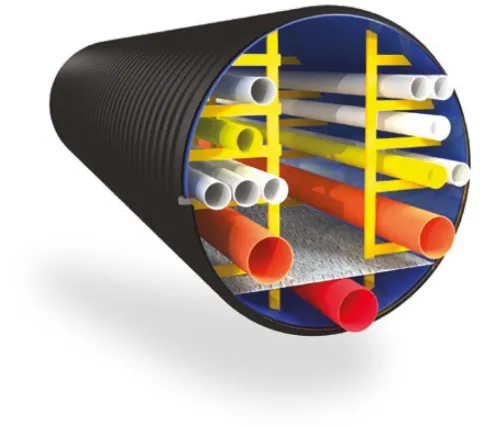

Tunnels and ducts in steel and polyethylene pipes housing technical networks and underground utilities: electricity, telephone, data, fibre optics, water supply, sewerage and technical gases.

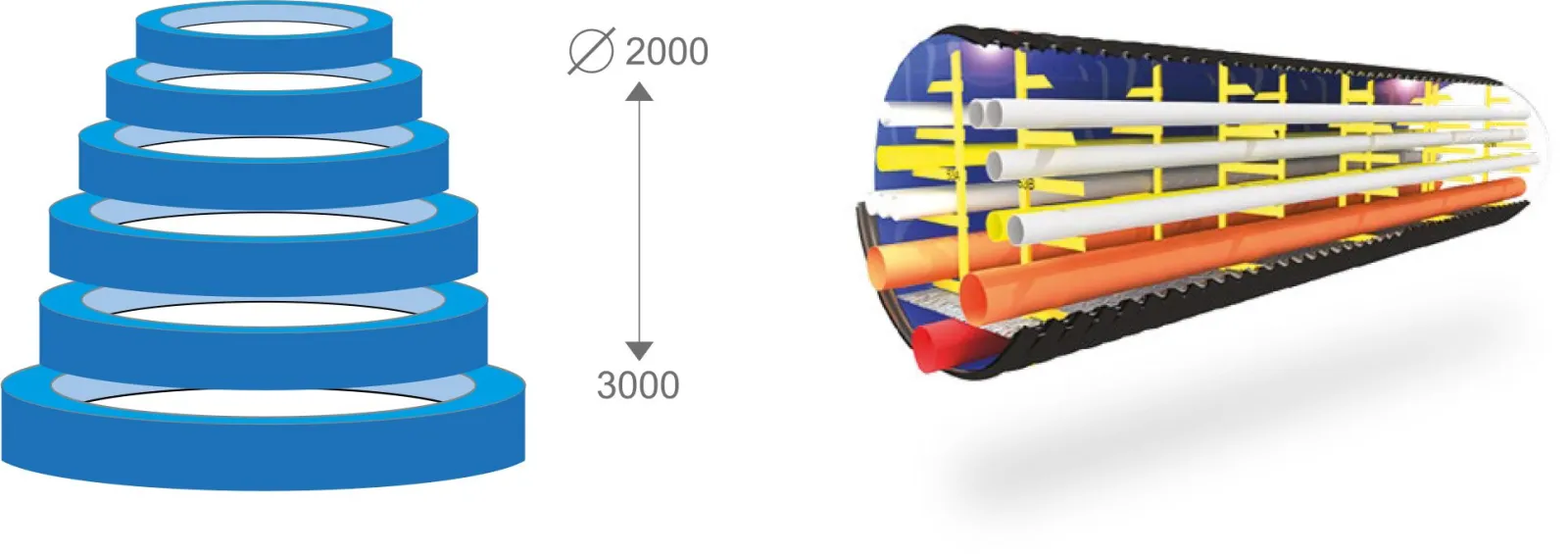

- Internal diameter
- up to 3000 mm
- Ring stiffness
- up to SN 20
Advantages
- Resistance to chemicals and abrasion
- No infiltration into the pipe body
- Pipe lengths up to 13.40 m and diameters up to 3000 mm
- Ring stiffness up to SN 20, static and dynamic strength
- Long service life and low maintenance
- Simple handling and installation, fewer risks on site
- Inspection and maintenance without disturbing the road surface
Images
Technical data
| Internal diameter | up to 3000 mm |
|---|---|
| Ring stiffness | up to SN 20 |
| Pipe length | up to 13.40 m |
