PALATANK storage tanks

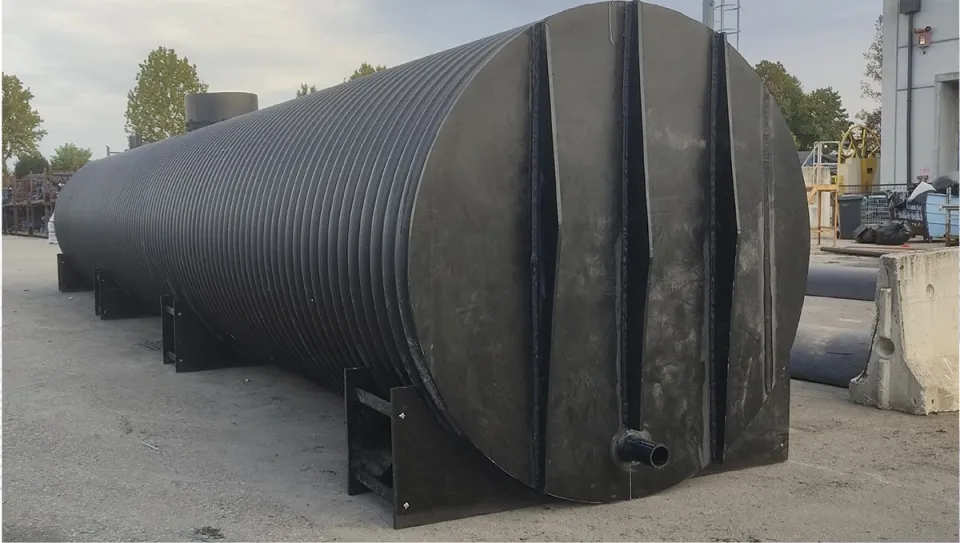

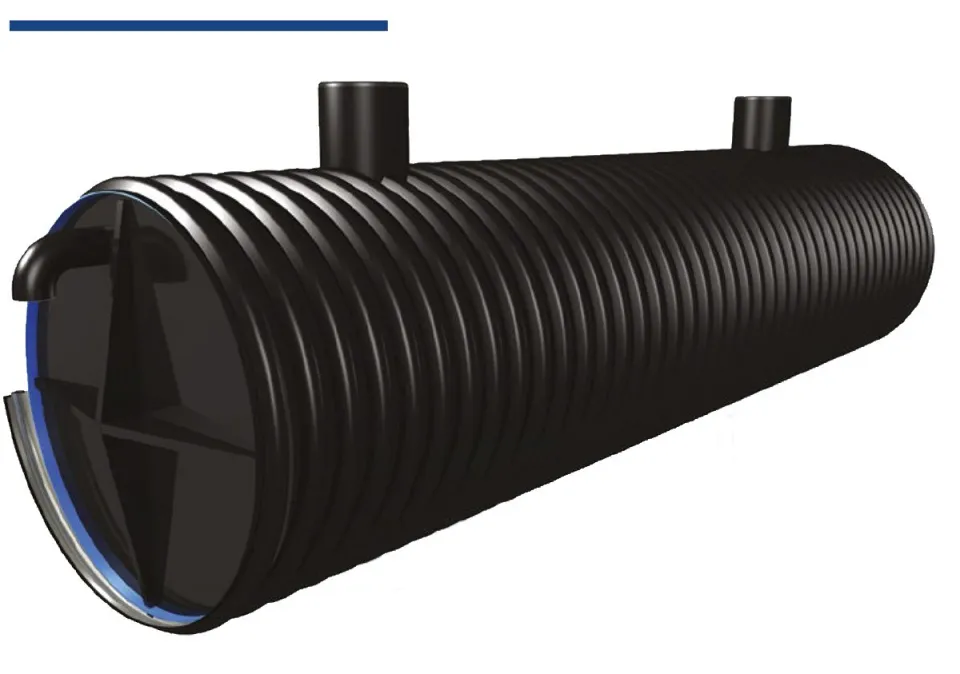

Tanks made from steel and polyethylene pipes, installed underground beneath trafficked surfaces or above ground, for storing and reusing drinking water, rainwater and firefighting reserves.
- Configuration

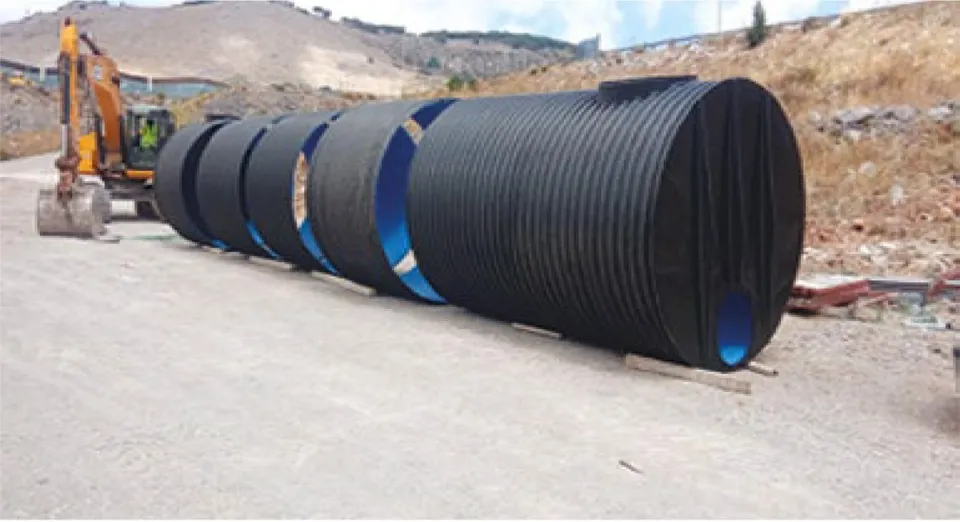

- Single-piece or modular
- Installation

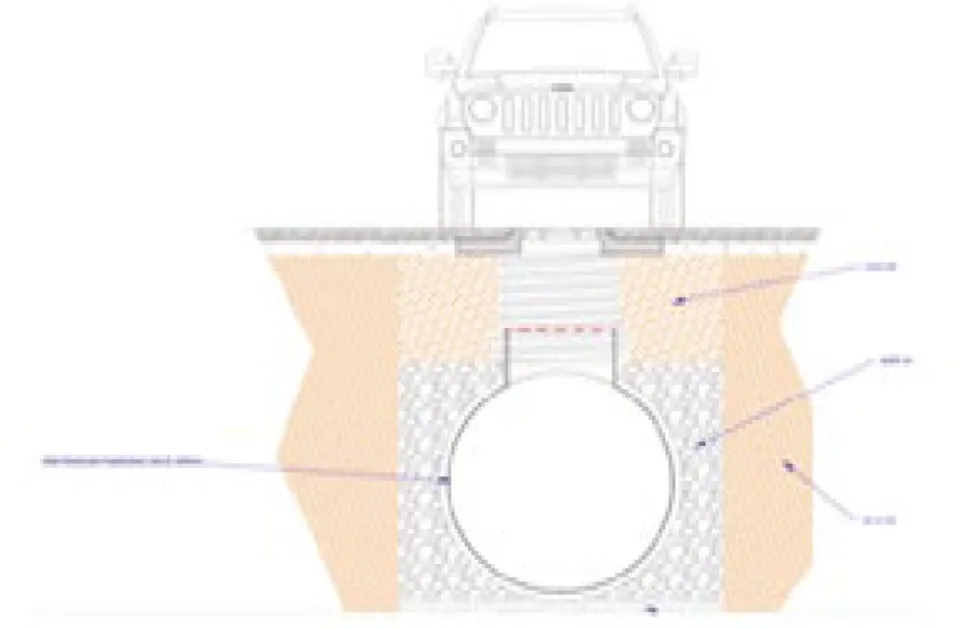

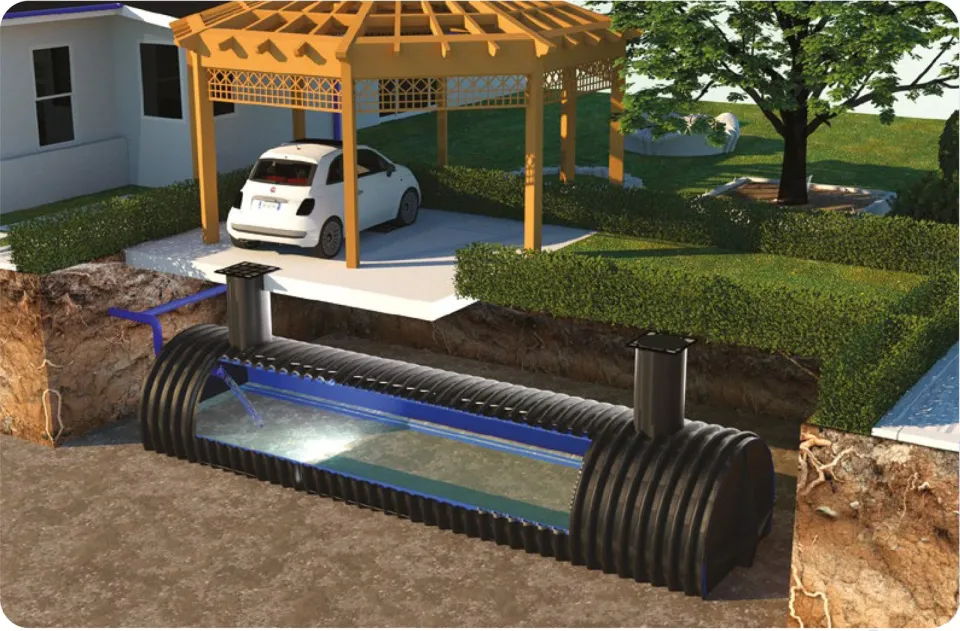

- Underground beneath trafficked surfaces or above ground
Drinking water
Polyethylene is non-toxic, does not promote algae growth and is not attacked by chemicals present in the soil: PALATANK tanks are suitable for storing drinking water and other liquid foodstuffs. On request, a small pumping station with pump housings can be built into the tank volume.
Fire water reserves

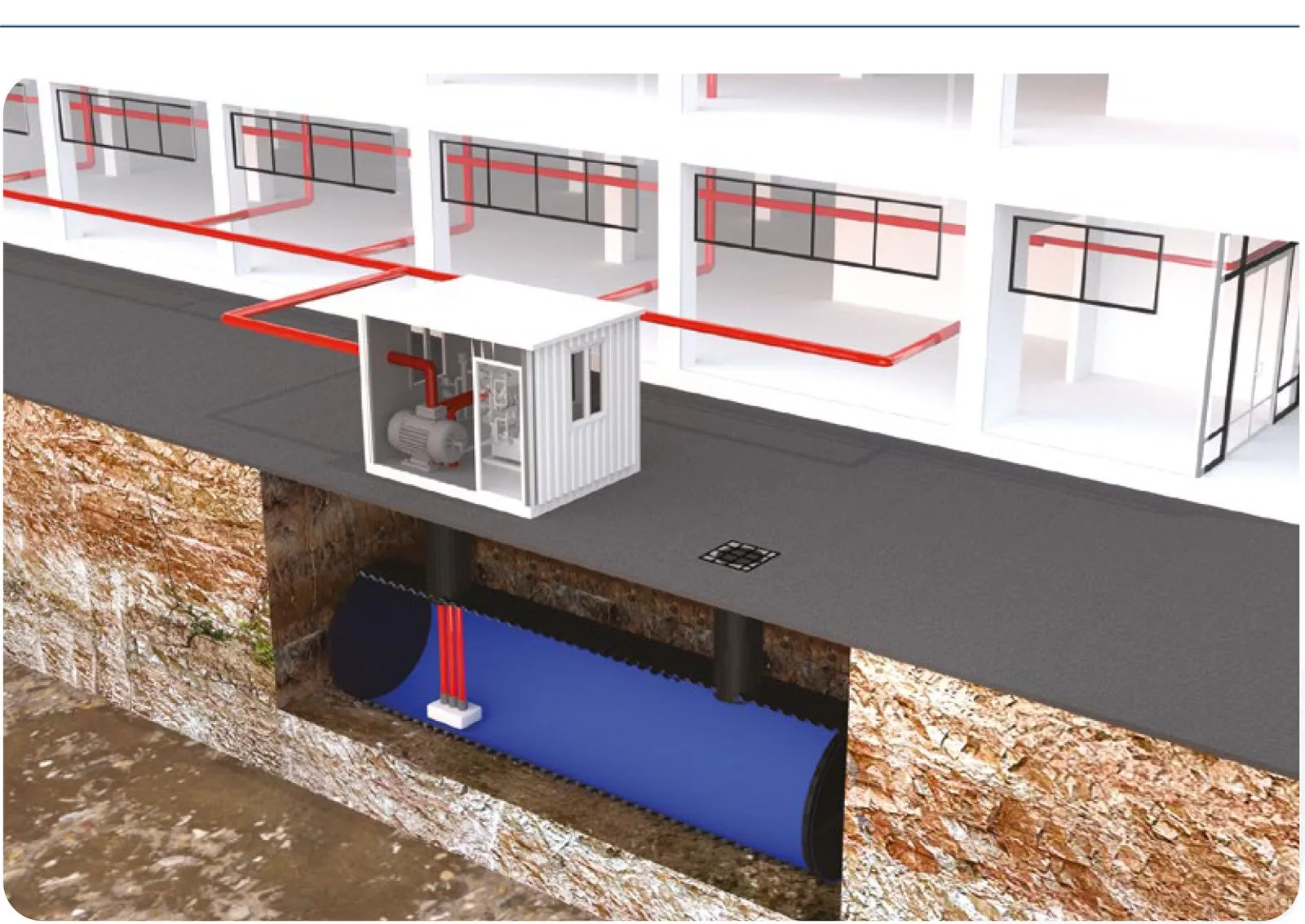

Combined with a plant room and a pressurisation station, the PALATANK tank forms a complete fire-fighting system that can also be installed under trafficked areas, with suction lift or flooded suction. The pressurisation unit can use vertical-shaft pumps with suction lift, horizontal-shaft pumps with flooded suction, or pumps in the plant room drawing with suction lift.

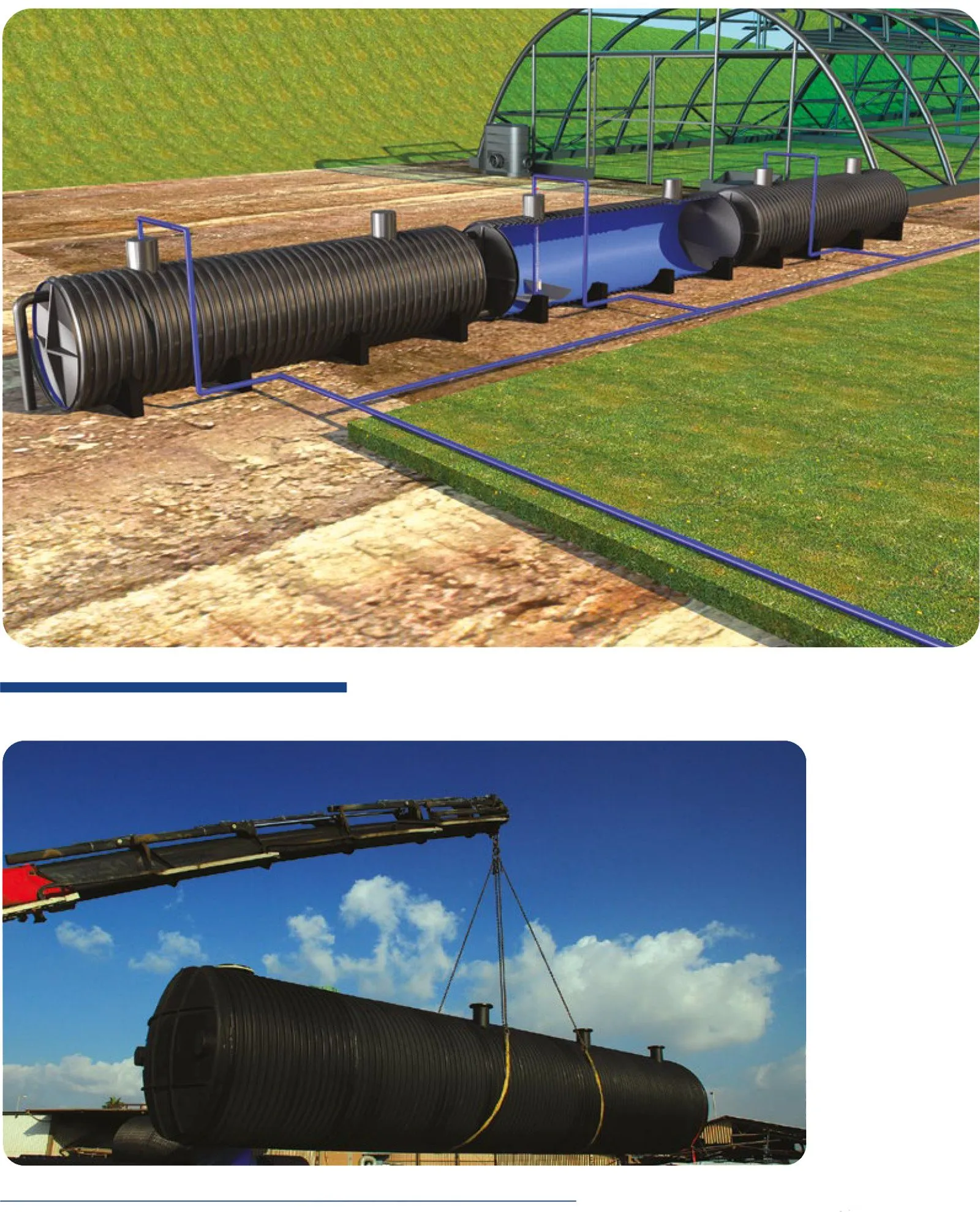

Irrigation and reuse
In irrigation systems, the tank stores and delivers the volumes required for cultivation, supplying automatic or manual systems. It is equipped with inlet pipes, flap valves, overflow, submersible electric pumps, delivery pipes and electronic pressure switches.
The internal housings accommodate accessories from partner companies or, if the client prefers, from other brands.

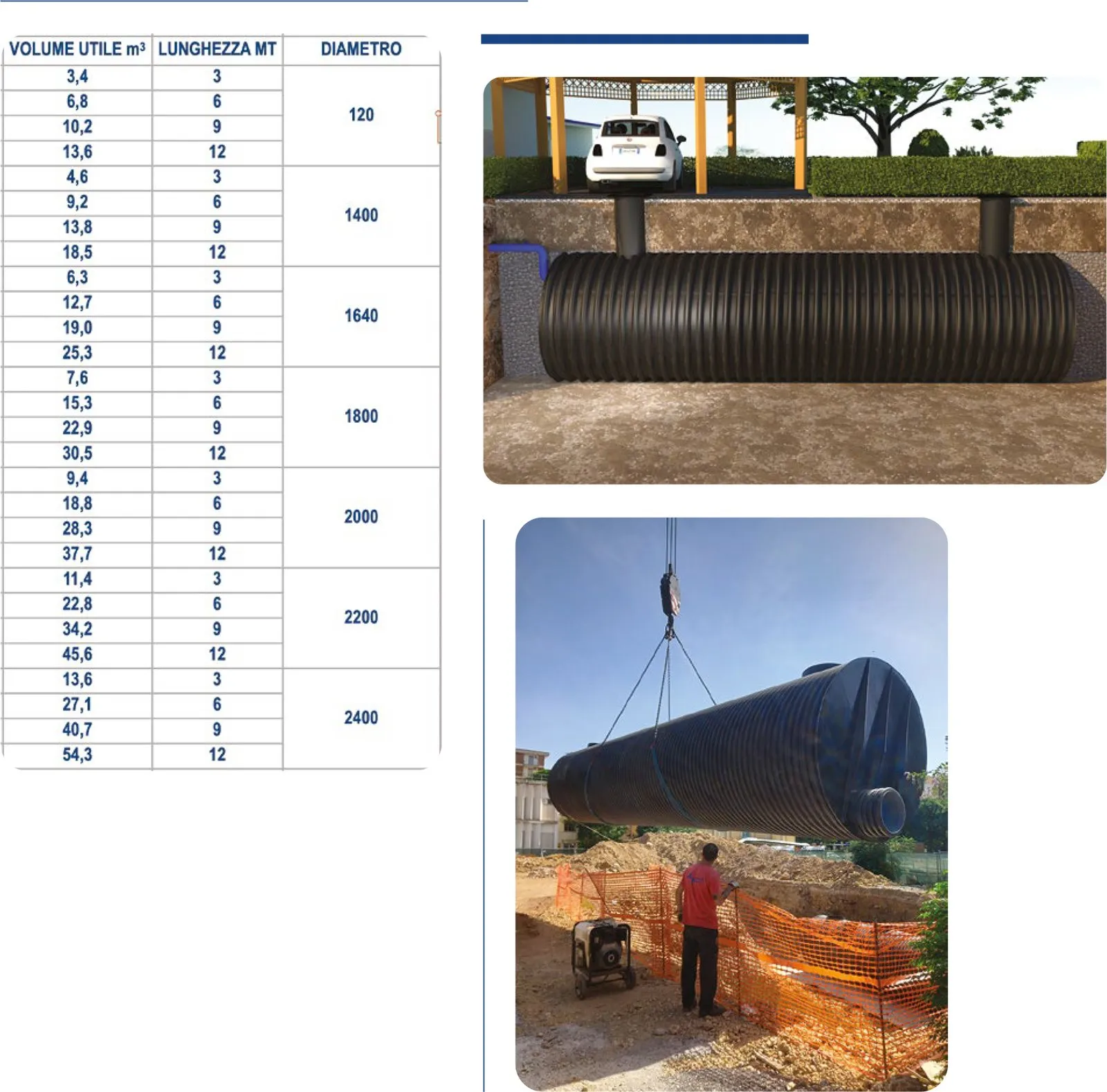

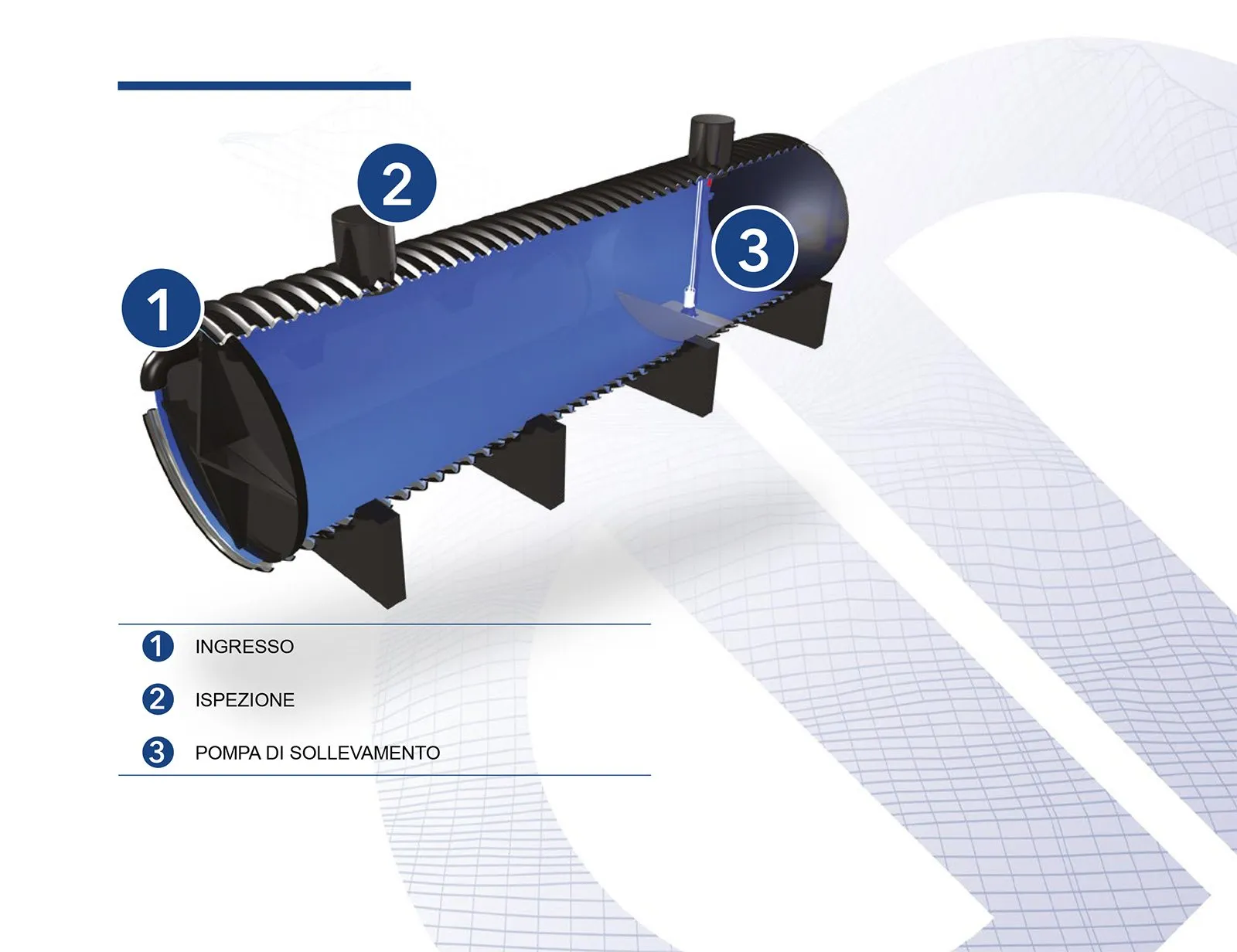

Images and dimension table
Technical data
| Configuration | Single-piece or modular |
|---|---|
| Installation | Underground beneath trafficked surfaces or above ground |
| Drinking water | Regulation (EC) 1935/2004, Ministerial Decree 174/2004 |
| Firefighting | UNI EN 12845, UNI 11292, UNI 10779, Presidential Decree 151/2011 |

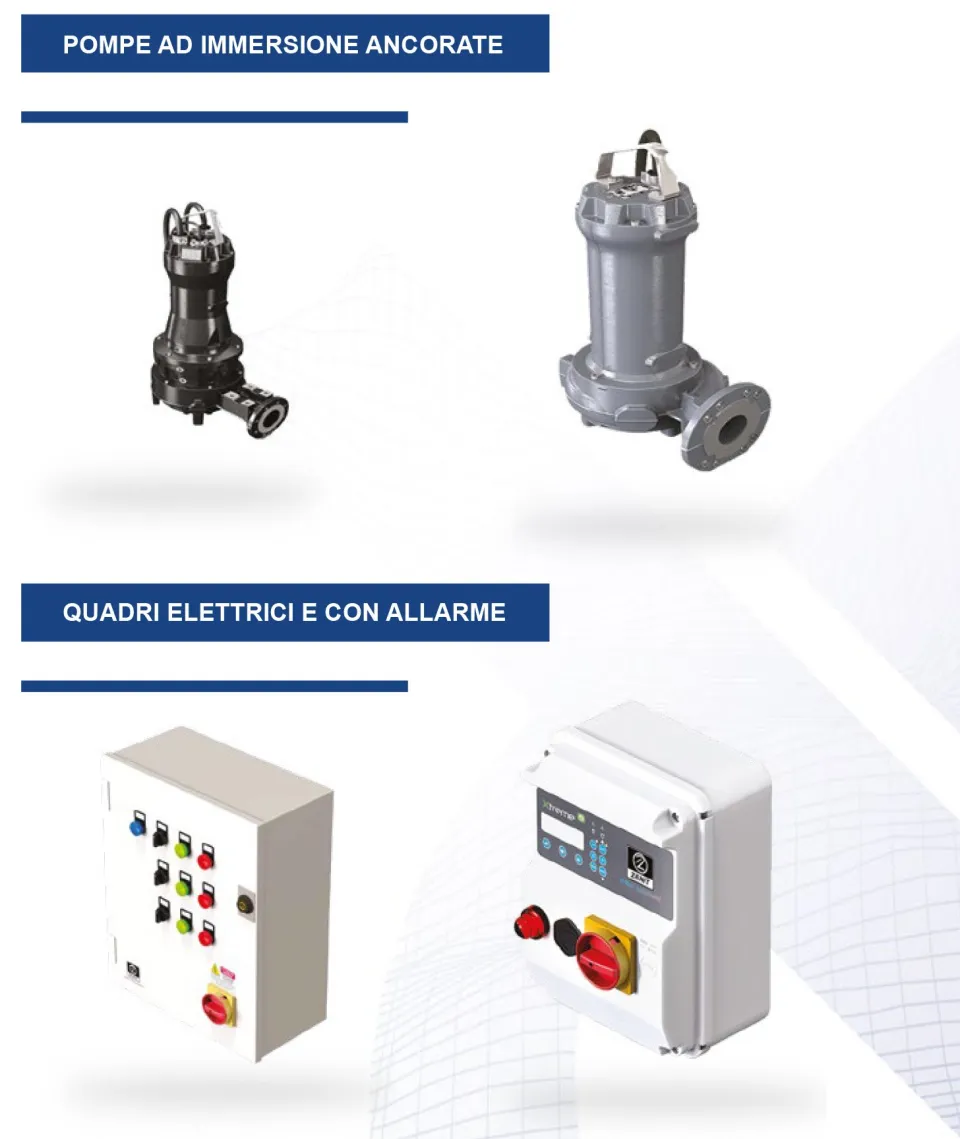

| Accessories | Overfill sensors, submersible pumps, control panels, network connections |
